Heat treatment

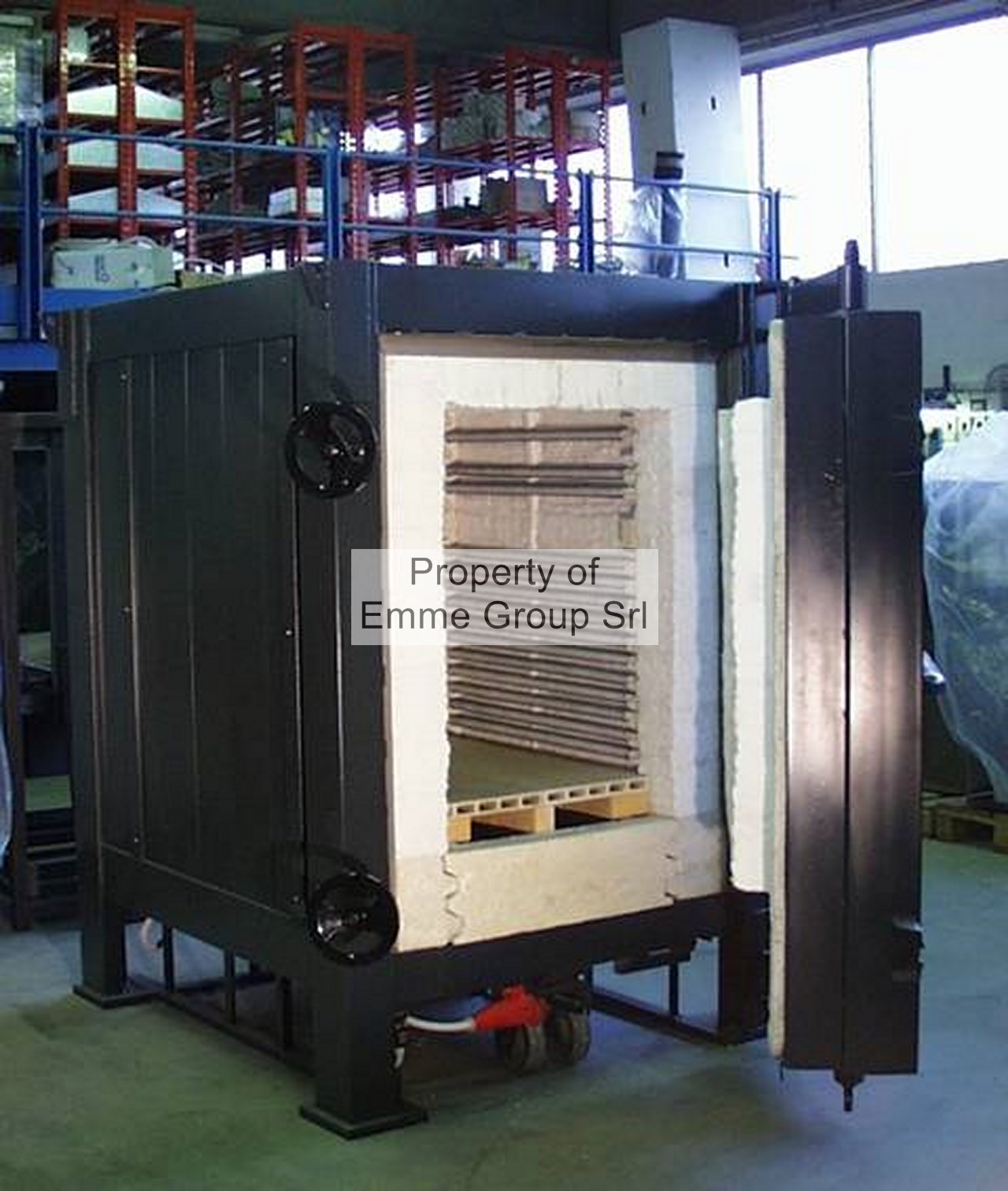

Electrical bogie furnace

High thermal performance,
energy saving ,
Strong bogie structure

Opening manual or automatically

Bogie extracting manual or automatically

Range temperature from 600° to 1380 °C
Electrical Supply
Controlled by multisteps PLC thermoregulator with SCR Unit
High performance resistors with long operatonal life
CE certificate


HEAT TREATMENT BOGIE HEARTH FURNACES- 1.100°C


    Internal dimensions (mm) External dimensions (mm) Volt Power
  Mod. Width Height Depth Width Height Depth V Kw
  MGTTE 111 1000 1200 1000 1800 2500 2800 400 300
  MGTTE 112 1000 1200 2000 1800 2500 3800 400 500
  MGTTE 113 1000 1200 3000 1800 2500 4800 400 600
  MGTTE 114 1000 1200 4000 1800 2500 5800 400 700
  MGTTE1.514 1500 1200 5000 2300 2500 5800 400 900
  MGTTE 222 2000 2000 2000 3000 3600 3800 400 1300
  MGTTE 223 2000 2000 3000 3000 3600 4800 400 1300
Other dimensions, shapes can be made by request. The technical data shown here are not binding. The company reserves the right to make changes without notice.
